Smart Card Reader Chips

SEALSQ reader chips are used by the world leading Smart Card Reader OEM’s to build contact and dual-interface smart card readers, targeting applications in healthcare, pharmaceuticals, government, and education. Public and private organizations use these identity verification devices when seeking the highest security and performance in access management.
Contact Us

Introduction

Fast time-to-market with proven performance and stability

SEALSQ offers hardware platforms alone and with integrated third-party applications, allowing customers to quickly build smart card readers without requiring custom development. Based on 8/16-bit RISC processors, our Smart Card Reader chips are EMV-CO compliant and equipped with DC/DC for a wide compatibility.
SEAL SQ Semiconductors Smart Card Reader SCR200 QFN64-2 (1)
AT90 SCR200

Smart card reader chip featuring our 16MHz RISC CPU Microcontroller. Certified EMV level 1 and ISO 7816, the SCR200 supports DC/DC up to 5.5V and integrates the keyboard interface, hardware AES and RNG. The 64KB Flash memory allows for a faster time-to-market.

Key Benefits
  • Fast Time to Market
  • Ideal for firmwares that require updates in time
Key Technical features
  • 16MHz 8/16-bit RISC CPU Microcontroller
  • EMV Level 1 compliant ISO 7816 Smart Card Interface
  • DC/DC based support of Class A, B, C from 2.7V-5.5V Power Supply
  • 8 EndPoints USB 2.0 Interface
  • High Speed SPI, 2 Wires & USART Interfaces
  • -40°C to +85°C
  • 64KBytes Flash / 4kB RAM / 4B EEPROM
  • 8x8 Matrix Keyboard Interface
  • HW AES and RNG
  • QFN32 and QFN64 packages
Download

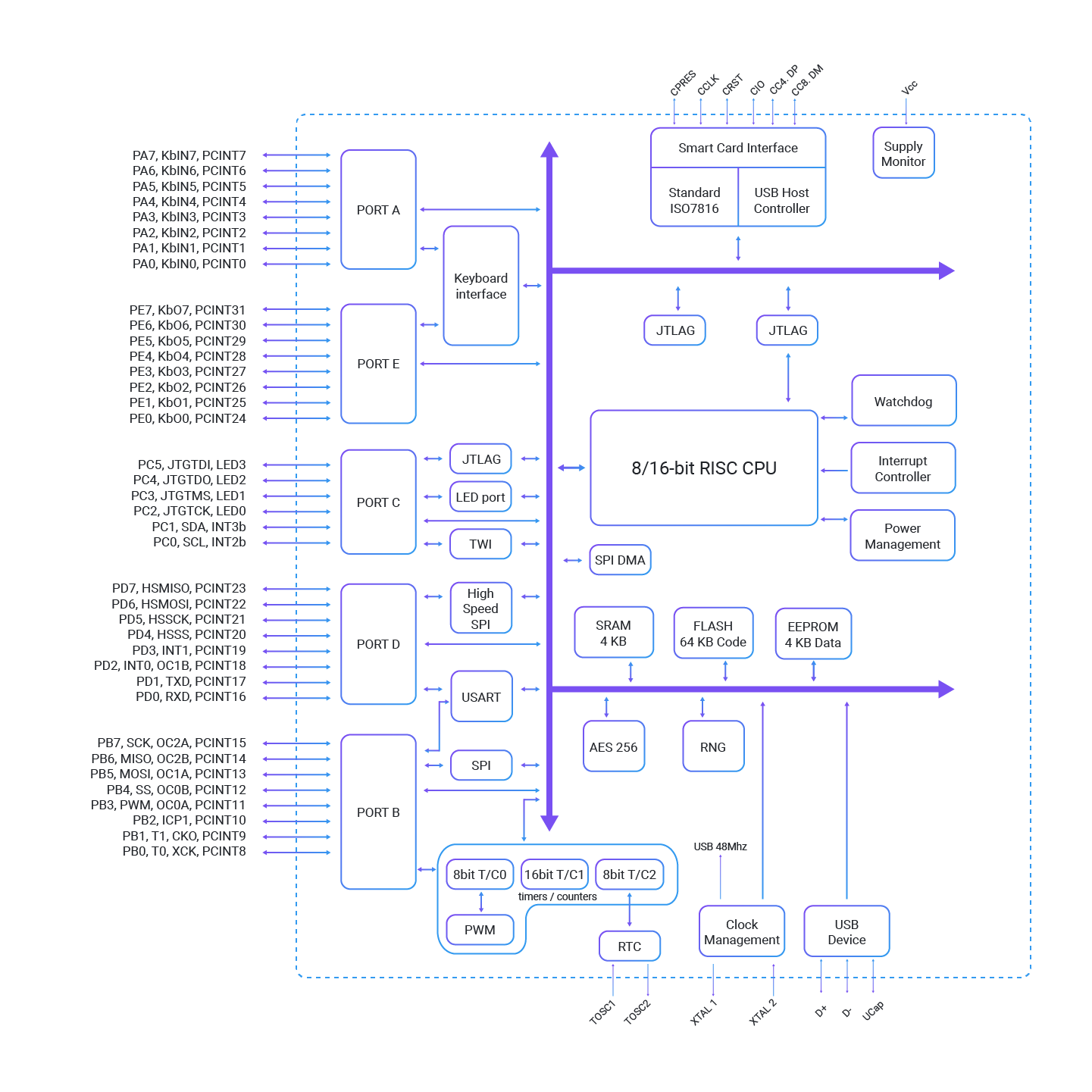

SCR 200 Block Diagram
SCR200 Core Architecture-2

Applications

  • Application access
  • Security
  • Identification
  • Government, Enterprise or Home use
SEAL SQ Semiconductors Secure Element Vault IC 292 DFN6-2 (1)
AT90 SCR075

Cost effective smart card reader chip featuring our 16MHz RISC CPU Microcontroller. Certified EMV level 1 and ISO 7816, the SCR075 supports DC/DC up to 5.5V and integrates a keyboard interface. This is a cost effective 48KB ROM & 2KB RAM chip ideal to reduce the BoM if your firmware is proven.

Key Benefits

Ideal to transition from a flash chip to a ROM chip to reduce costs once the application firmware is proven.

Technical features
  • 16MHz 8/16-bit RISC CPU Microcontroller
  • EMV Level 1 compliant ISO 7816 Smart Card Interface
  • DC/DC based support of Class A, B, C from 2.7V-5.5V Power Supply
  • 8 EndPoints USB 2.0 Interface
  • High Speed SPI, 2 Wires & USART Interfaces
  • -40°C to +85°C
  • 48KBytes ROM / 2kB RAM
  • 4x4 Matrix Keyboard Interface
  • QFN32 package
Download

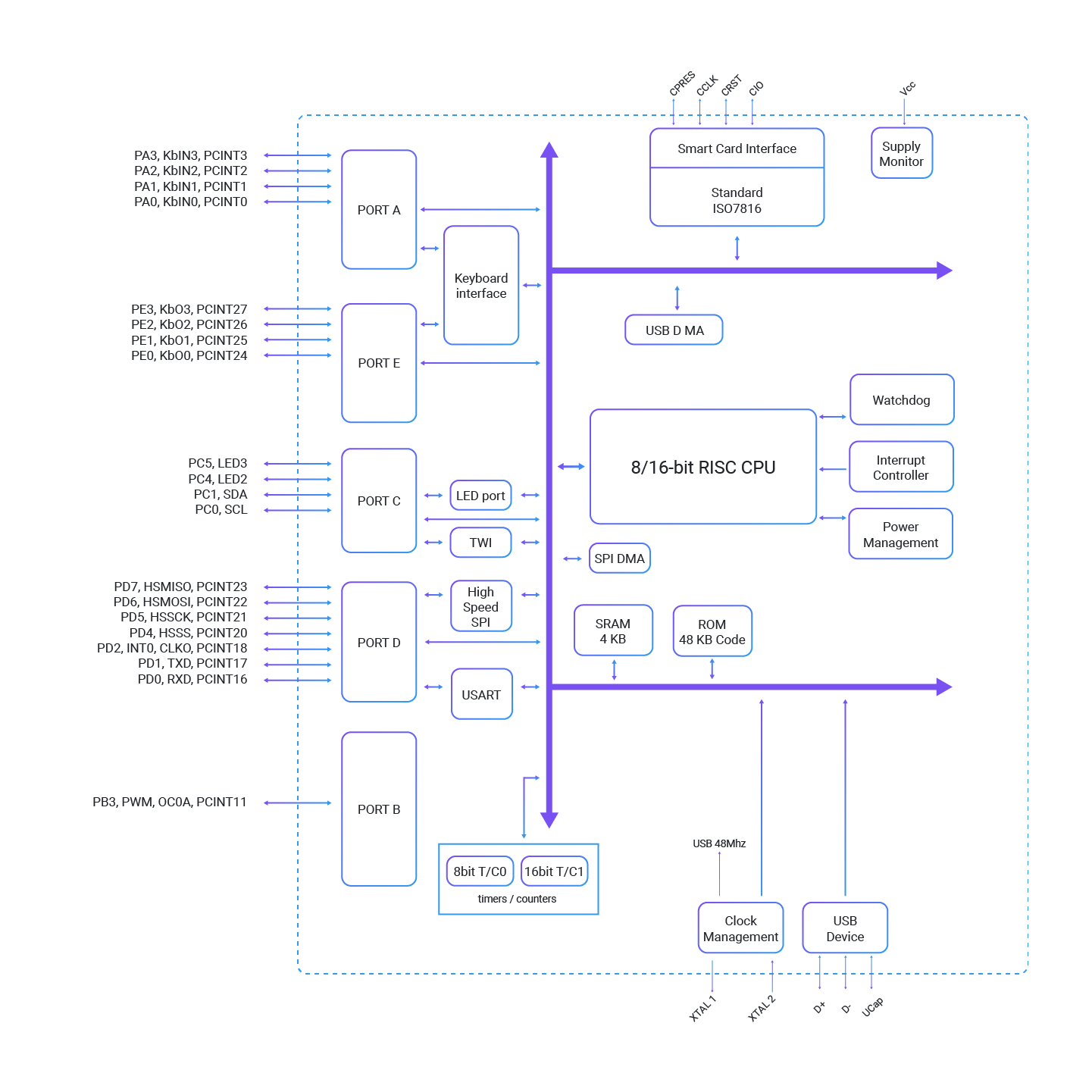

SCR 075 Block Diagram
075 Core Architecture-2

Applications

  • Application access
  • Security
  • Identification
  • Government, Enterprise or Home use

They trust us

HIB_Logo
Identiv_Logo
ACS-Logo
Logo-Famoco
Logo-AB-Circle

Certifications

All our Smart Card reader chips are EMV level 1 and ISO 7816 compliant
